Die Geschichte von Pimatic in der angewandten Pneumatik reicht bis ins Jahr 1974 zurück und hat seinen Hauptsitz in Huittinen, Finnland. Heute ist Pimatic ein führender Anbieter von angewandter Pneumatik und Niederdruckhydraulik in Finnland. Mit einer starken Wachstumsvision ist es ein zuverlässiger Partner für viele der weltweit führenden Hersteller, die pneumatische Lösungen in ihren Branchen anbieten.

The high quality of Pimatic’s work is based on solution-oriented design. Optimised material choices, systematic working methods and their staff’s up-to-date skills combined ensure that the end product is of the highest quality. Each individual solution they create has been extensively tested and carries a quality stamp for traceability.

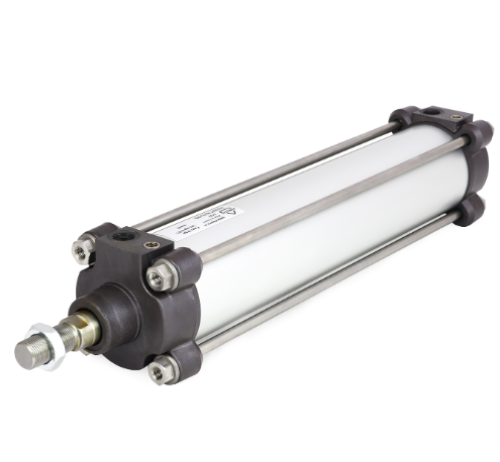

ISO 15552 cylinders – P2720

• P2720 Double acting cylinder
• P2721 Cylinder with double rod
• P2722 Double cylinder (tandem)
• P2723 Rear opposed tandem
• P2724 Single acting front spring
• P2725 Single acting rear spring
• P2728 Multi-position tandem
• P2729 Double acting cylinder with internal anti-rotation

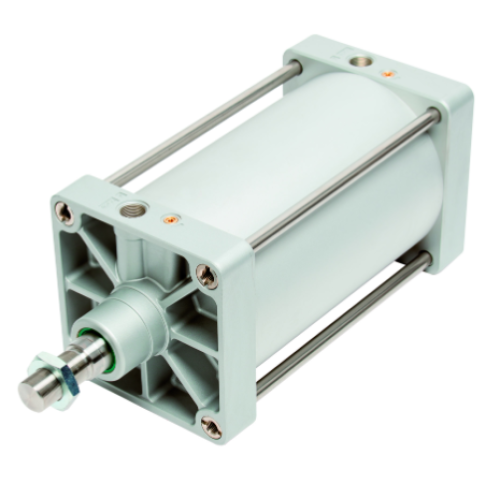

ISO 15552 / VDMA 24562 cylinders – P2520

Benefits

• Wide diameter range 32 – 320 mm
• Two barrel constructions available:
  • All diameters round hard-anodized barrel and tie rods
  • Anodized aluminium profile barrel diameters 32 – 100 mm

• Options:

• • Stainless steel piston rod, chrome plated
  • Corrosive resistant, steel parts made of AISI316
  • High temperature FKM seals
  • Double piston rod
  • 3- and 4- position cylinders

• Magnetic piston standard in diameters 32-200 mm, as an option in diameters 250 and 320 mm

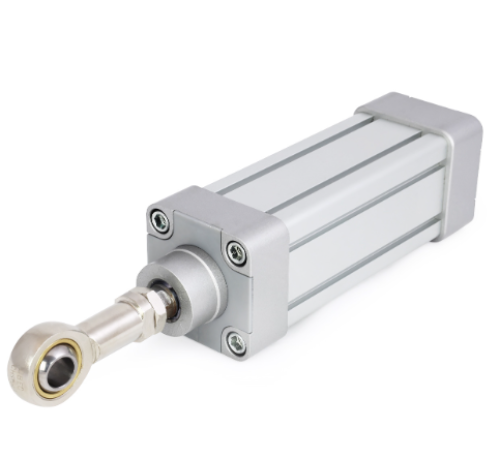

ISO 15552 / VDMA 24562 heavy duty cylinders – P2020

Benefits

• Heavy duty cylinder diameter range 32-200 mm
• Hard-anodized barrel with tie rods
• PTFE piston rod sealing in diameters 80-200 mm

• Options:

• • Stainless steel piston rod, chrome plated
  • Corrosive resistant, steel parts made of AISI316
  • High temperature FKM seals
  • Double piston rod
  • Tandem cylinders
  • 3- and 4- position cylinders

• Magnetic piston standard in diameters 32-125 mm, as an option in diameters from 160 and 200 mm
•
