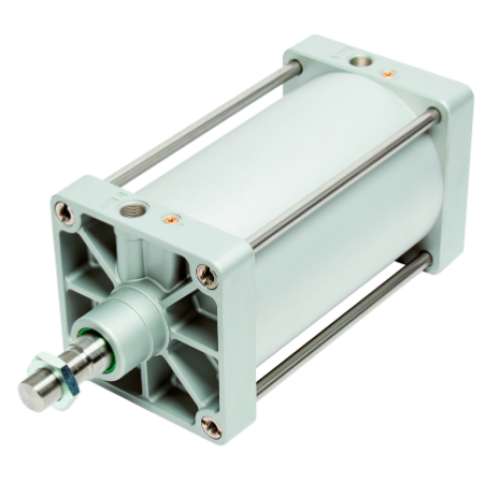

Pimatic cylinders – P2720

  • Marke:Pimatic
  • Modell:P2720
  • Tags:ISO 15552

Haben Sie Fragen zu diesem Produkt?
Bitte wenden Sie sich telefonisch oder per E-Mail an unseren Kundenservice.

+49-511 9170-9151

Produktbeschreibung

ISO 15552 cylinders – P2720


Technical characteristics

Double acting cylinder, with magnetic piston as standard feature

  • ISO 15552 construction
  • Diecast aluminum covers
  • Hard anodized round tube with tie rod construction
  • Chromed piston rod
  • Pressure range: 0…10bar
  • Temperature range: -35…+80⁰C with standard seals (PU)
  • Media: Pressurized air ( filtered 40μm) or inert gas. Lubricated or dry
  • Diameter 32…320mm
  • Standard strokes: 25…1000mm
  • Viton seals as an option (max temperature +150⁰C)
  • Other special seals available upon request

Constructions

  • P2720 Double acting cylinder
  • P2721 Cylinder with double rod
  • P2722 Double cylinder (tandem)
  • P2723 Rear opposed tandem
  • P2724 Single acting front spring
  • P2725 Single acting rear spring
  • P2728 Multi-position tandem
  • P2729 Double acting cylinder with internal anti-rotation
