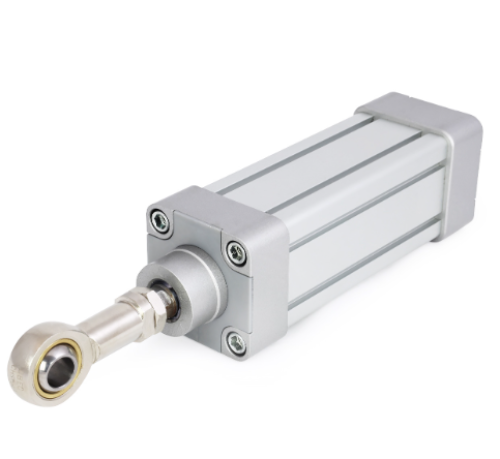

Pimatic ISO 15552 / VDMA 24562 cylinders – P2520

• Wide diameter range 32 – 320 mm
• Two barrel constructions available:
  • All diameters round hard-anodized barrel and tie rods
  • Anodized aluminium profile barrel diameters 32 – 100 mm
• Options:
• Stainless steel piston rod, chrome plated
• Corrosive resistant, steel parts made of AISI316
• High temperature FKM seals
• Double piston rod
• 3- and 4- position cylinders
• Magnetic piston standard in diameters 32-200 mm, as an option in diameters 250 and 320 mm
