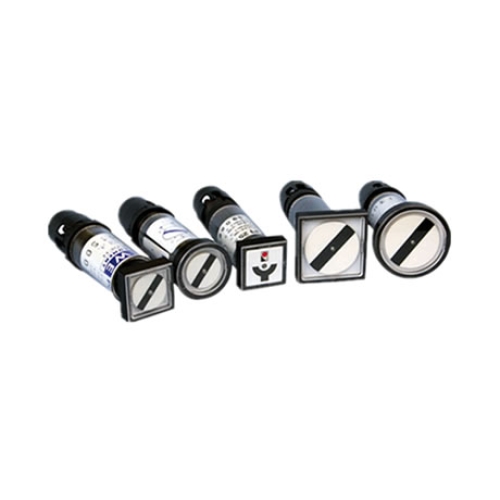

CEWE Position indicators PI Series

CEWE position indicators are designed for use in indicator panels and mimic panels. Position indicators for electrical circuit breakers and isolators are available with indicator discs in 'bar', 'angle' and 'disconnector' designs. Indicator discs for valves are available in 'amber-white' and 'red-green' formats. A moving-magnet system is used, ensuring high precision of movement of the indicator disc while keeping the power consumption low.

Features

Available in AC and DC variants

'Bar', 'angle' and 'disconnector' formats for circuit breakers and isolators

'Amber-white' and 'red-green' formats for valves

Screw terminals for cables up to 1.5 mm²

Available in a range of sizes: 24x24, 25x25, 36x36, Ø 29 and Ø 39 mm

Provided with protection cover

Polycarbonate enclosure (IP 54 rated)

Wide operating voltage range 24-230 VDC

Suitable for panel thickness up to 12 mm

Standards compliance

Personal safety EN 61010:1

Double isolated to category III, Table D12

IEC 51, EN 50081-1, EN 50081-2, EN50082-1, EN50082-1, IEC 473
