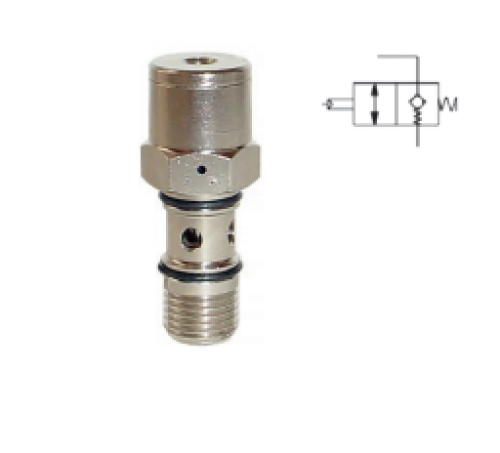

HOSE BREAK VALVES MV45 SERIES

• A valve installed in the cylinder connection opening to prevent movement of the cylinder in case of hose breakage

• A separate banjo ring, e.g. MA350814, can be fitted to the valve Different models from a range of connectors

• Pressure range: 2 to 10 bar

• Temperature range: –10…+70 ºC

• Working fluid: Filtered (40 µm) compressed air or neutral gases, with or without spray lubrication

• Frame: Nickel-plated brass

• Gaskets: NBR
